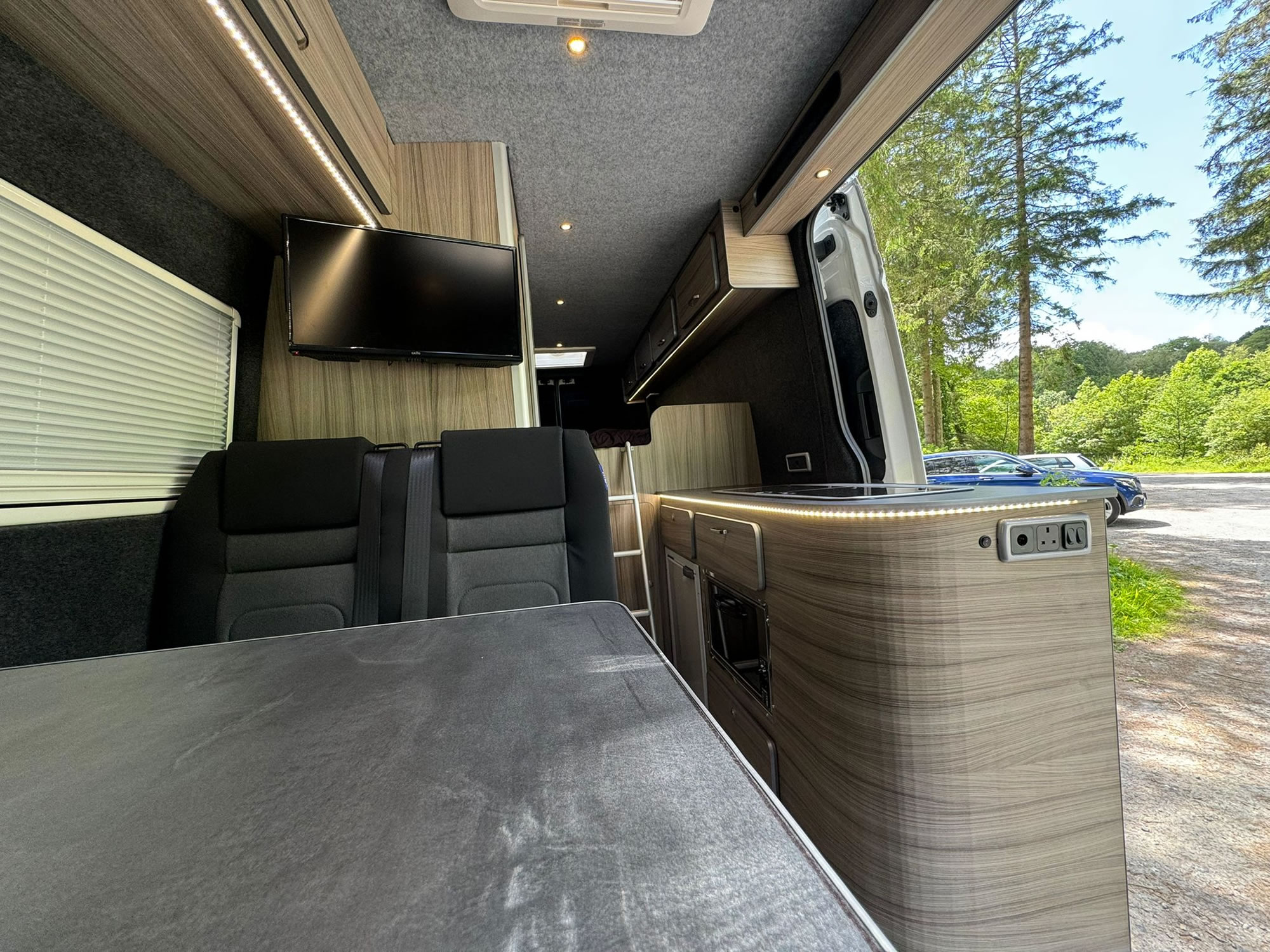

If you are looking for a little bit more space and ample storage for your bikes, surfboards kayaks etc. The Gower edition is perfect for you. This conversion can be completed on a VW Crafter or Mercedes Sprinter. These vans are the ideal base for a race van camper, adventure weekender or a relaxing break away. The bed is fixed longitudinal and can be built to almost any height allowing for a garage and storage under the bed. Included in this design is a wet room with shower and toilet, full kitchen with the option of the Platinum specially designed curved kitchen and many more optional extras.

  • 4 person
  • Mercedes Sprinter, VW Crafter
  • High Top



Sound Deadening

Looking for a quieter driving experience? Dynamat extreme is our choice. One of the best sound deadening products available on the market today.


We use a double bubble wrap with foil back insulation on all of the inner skins of the external panels. We then go one stage further by using a recycled plastic to fill all the voids. These two combined provide a quieter environment internally as well as providing better thermal qualities for the van.

Ply Lining

This stage is a vital part for the build in making sure there is a solid foundation to build from. We use brand new 6mm ply boards on the walls along with 12mm ply for the flooring.


After the insulation and boarding has been completed we finish the walls and ceiling off with high quality four way mega stretch carpet. This carpet will make a huge difference to the environment inside your vehicle making for a much quieter, pleasant driving and living experience. The carpet is available in different colour shades. If carpet is not your choice of material then other options are available.


With the one piece flooring making for a solid foundation we line the floor with an Altro flooring product. Altro is a hardwearing easy to clean product which has proven to be an excellent choice for campers. It is available in many colours and different styles.

Seitz Double Glazed Windows

These windows are available in many different sizes and shapes, they are the go to window for the larger campers and come with a fly screen and pleated blinds system built in.


We use handle-operated, double acrylic glazed Mini Heki Style roof light for motorhomes and caravans fits neatly into a standard 400 x 400 mm aperture. An inner frame holds a darkening blind and fly screen (separately adjustable) for shade, privacy and freedom from insects! Operated by a hand-lever, the dome can be opened to three different positions: fully open, half-open and bad-weather position. We also have an upgrade option to the Maxxair fan. This upgrade is built exclusively with an integrated rain cover, the Maxxfan can be left open when its raining – no need to close! Having a remote control also means you can easily operate it from anywhere in the vehicle. In other words, it has every feature you could want on a roof fan!

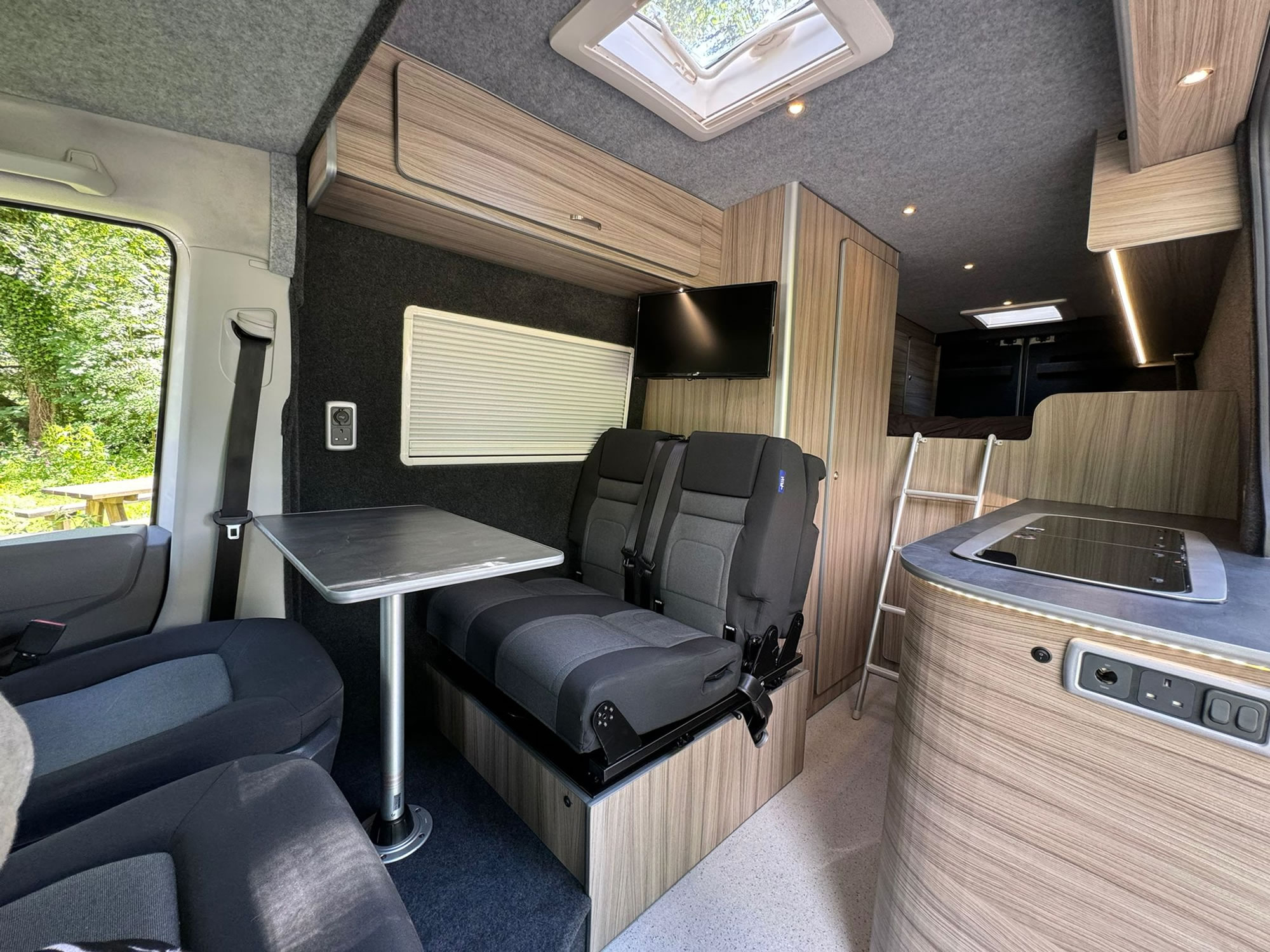

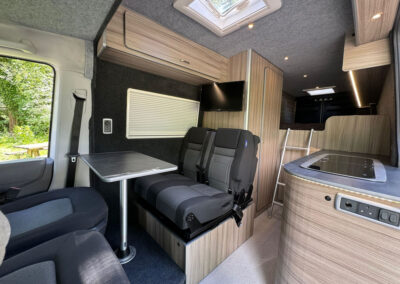

Travel Seat

Two person bench seats allows passenger travel. Custom upholstery options available.


12v Electrics

Our 12v electrical system consists of a 110 leisure battery, Victron DC-Dc charger and rear sockets. Upgrades to Lithium batteries can be added along with various sockets and USB charge points.

240v Electrics

Our 240 electrical system consists of a hook up point under the bonnet or cut into the side of the van on larger vehicles. The Bonus PMS3 is specifically designed for conversions where the user is looking for a simple system to perform basic tasks, whilst charging your leisure battery and fuse protecting your 12v appliances, such as powering your campervans fridge and lighting. Using the Bonus PMS3 power management system, you are able to safely power both 12v and 230v equipment installed in your campervan or motorhome. The Bonus PMS3 also features 4 fused outputs, a battery voltage indicator, and a separate switch for the water pump.

Solar Panel

Choose from various sizes, our preferred choice is the bonded and unsighted semi flexible panels with Victron MPPT charger.


We use LED overhead spotlights in all of our vans. Usually 4 spotlights are used but more can be added depending on the layout.

Strip Lighting

LED lighting under cabinets and over head lockers are run separately to the overhead lights which are perfect for evening and morning lighting inside your van.

Awning Lighting

On the larger builds we fit awning lights perfect for the under canopy lighting if you have a side awning or not.


We supply and fit Eberspacher diesel heaters fitted either inside or externally mounted under the van. This will extend your camping calender all year around.

Water Pump

Depending on the configuration of your campervan we use a 12v submersible Whale water pump or for the smaller conversion which feature an onboard 10-15L water storage. On the larger conversions with under slung water tanks we use The Shurflo Trail King Water Pump. This is an efficient and robust 12v pressurised fresh water pump suitable for use in caravans and motorhomes. Fully automatic, it is energy efficient and can even run dry without damage.

Water Tanks

Our water system provides on demand fresh water anywhere you travel. The water system includes a freshwater tank that can hold anywhere from 60 to 90 litres and will be specific to the model of van. To fill up your tank we install an external water fill allowing for easy fill ups with a hose while on the road. The waste tank will hold roughly the same amount as fresh and is easily emptied with a waste outlet.

Water Heater

We use a Truma water heating system able to run off electric or gas. Vented on the side of the van.

Gas Storage

Our gas systems are built and stored on an external door with easy access from outside the van. Our storage system is completely sealed off to the living area and will include drop vents at all of the gas joint points.

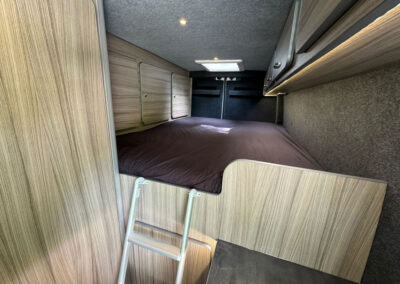

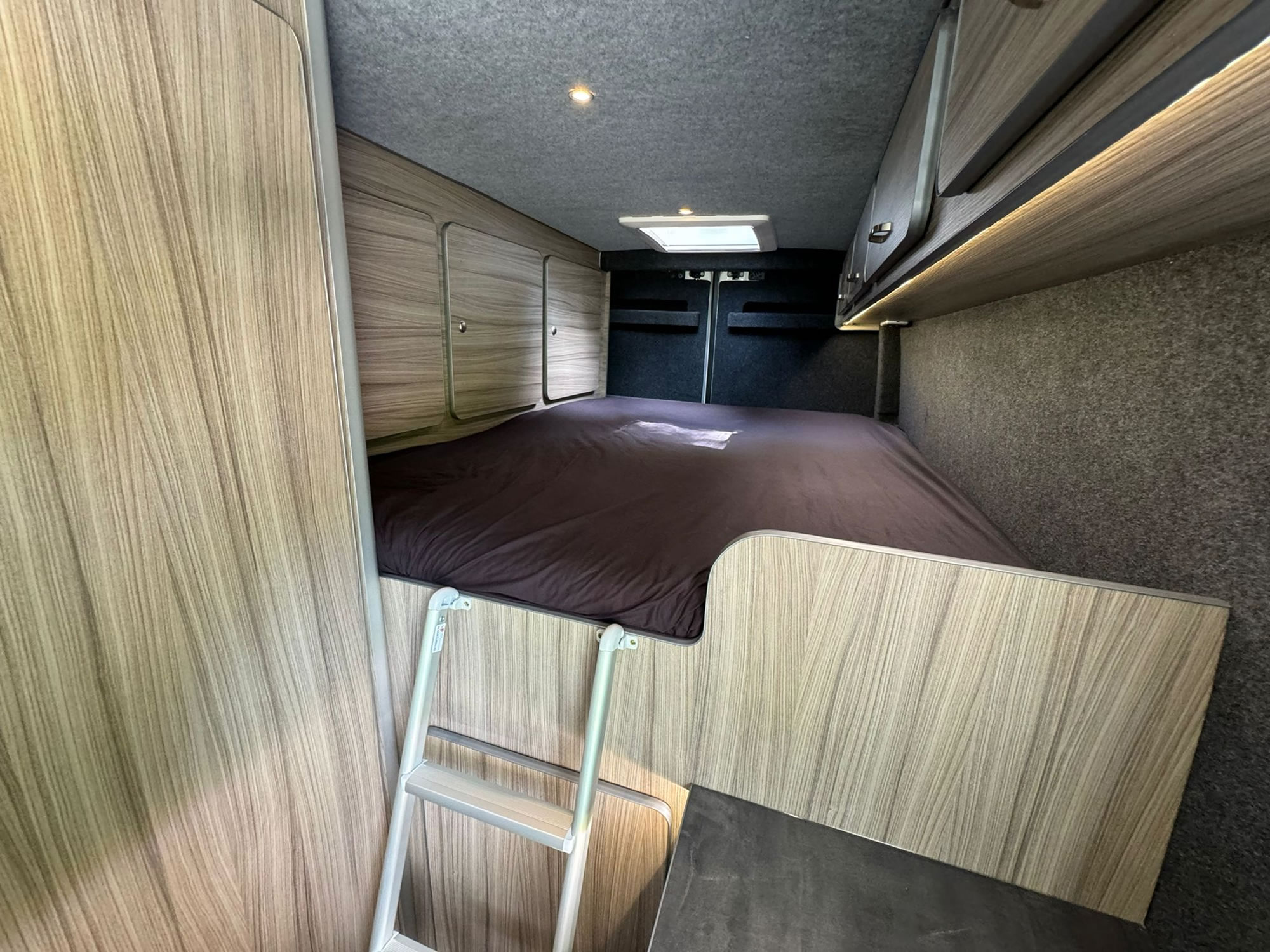

Fixed Bed

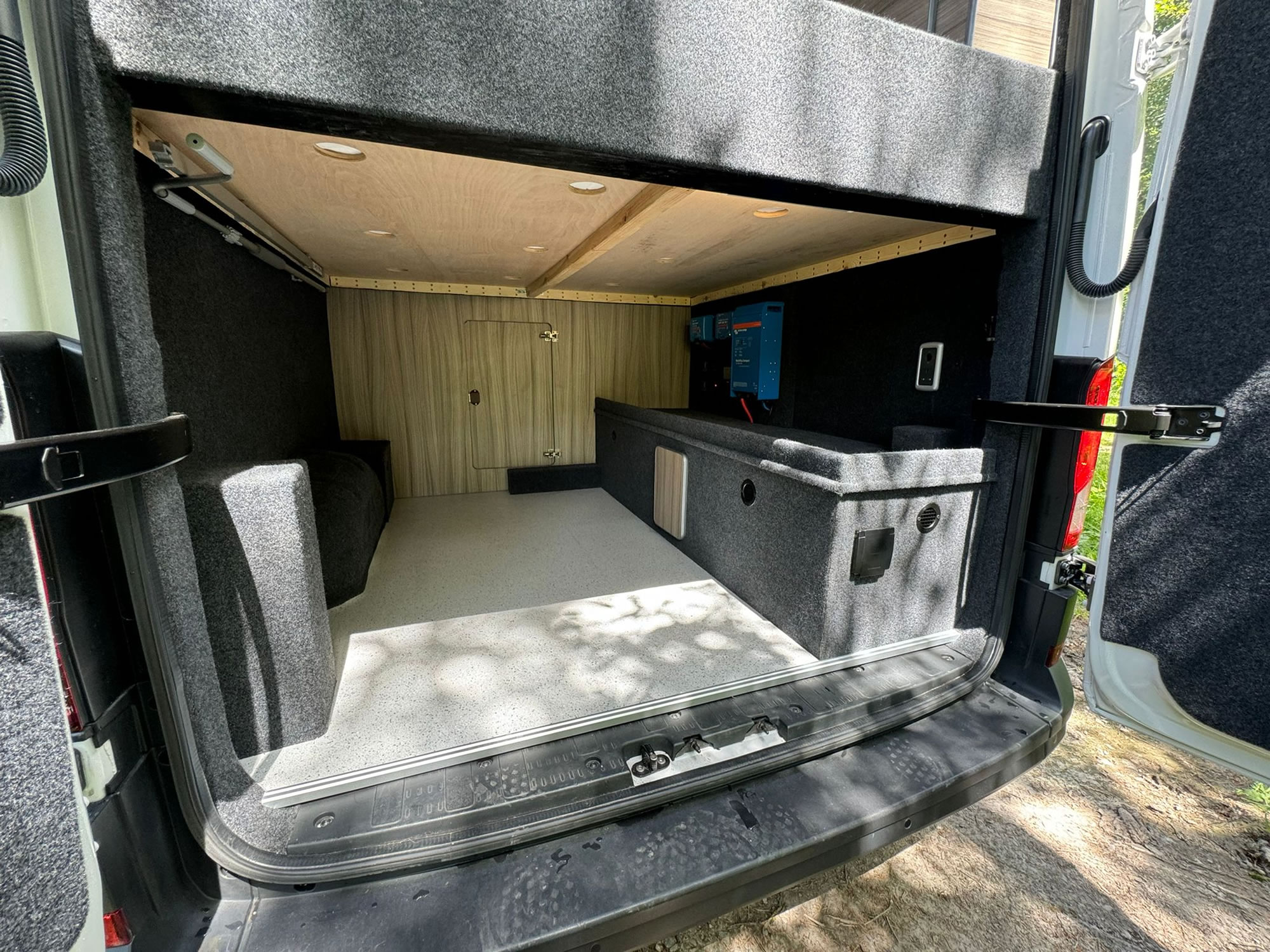

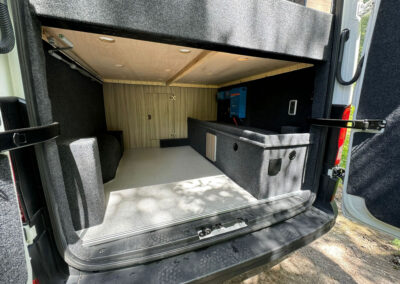

Available on the Gower and Rhossili edition conversions. The fixed bed can be built to a range of different sizes and heights. An added benefit of extra storage under the bed forms a nice garage area

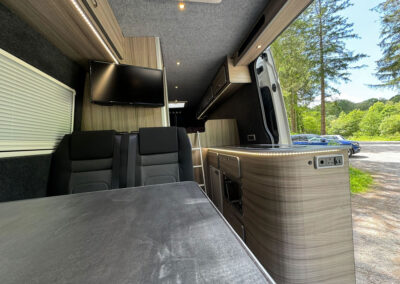

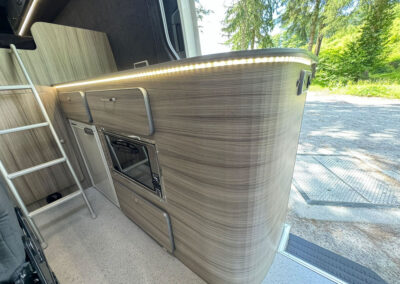

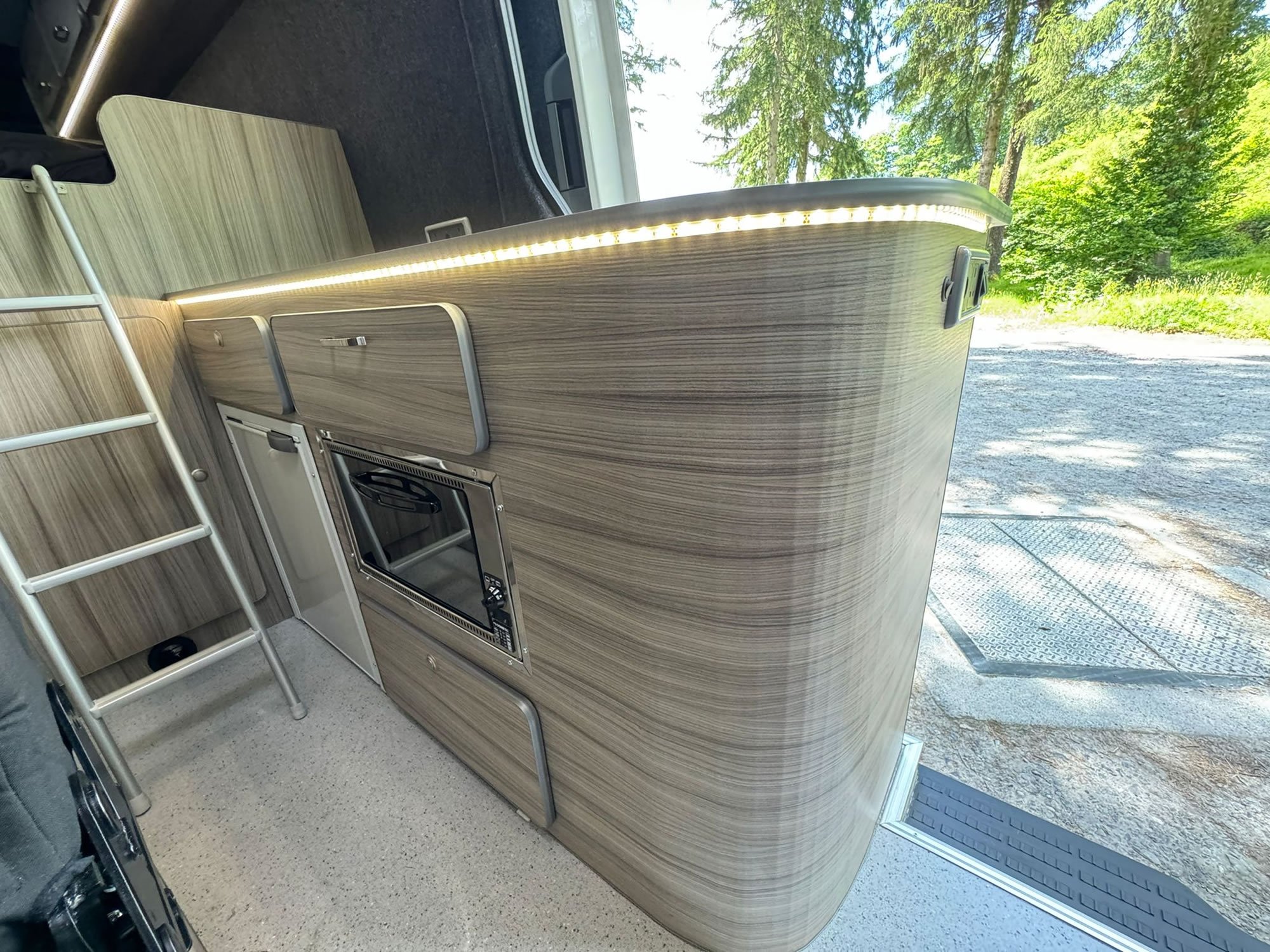

Curved Kitchen Unit

Platinums in house designed curved kitchen. Perfect for opening up the galley area.

Countertop Extension

External countertop extension allows you to extent your work surface to outside of the sliding door. Ideal when prepping food.

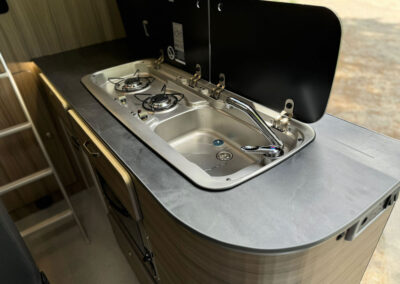

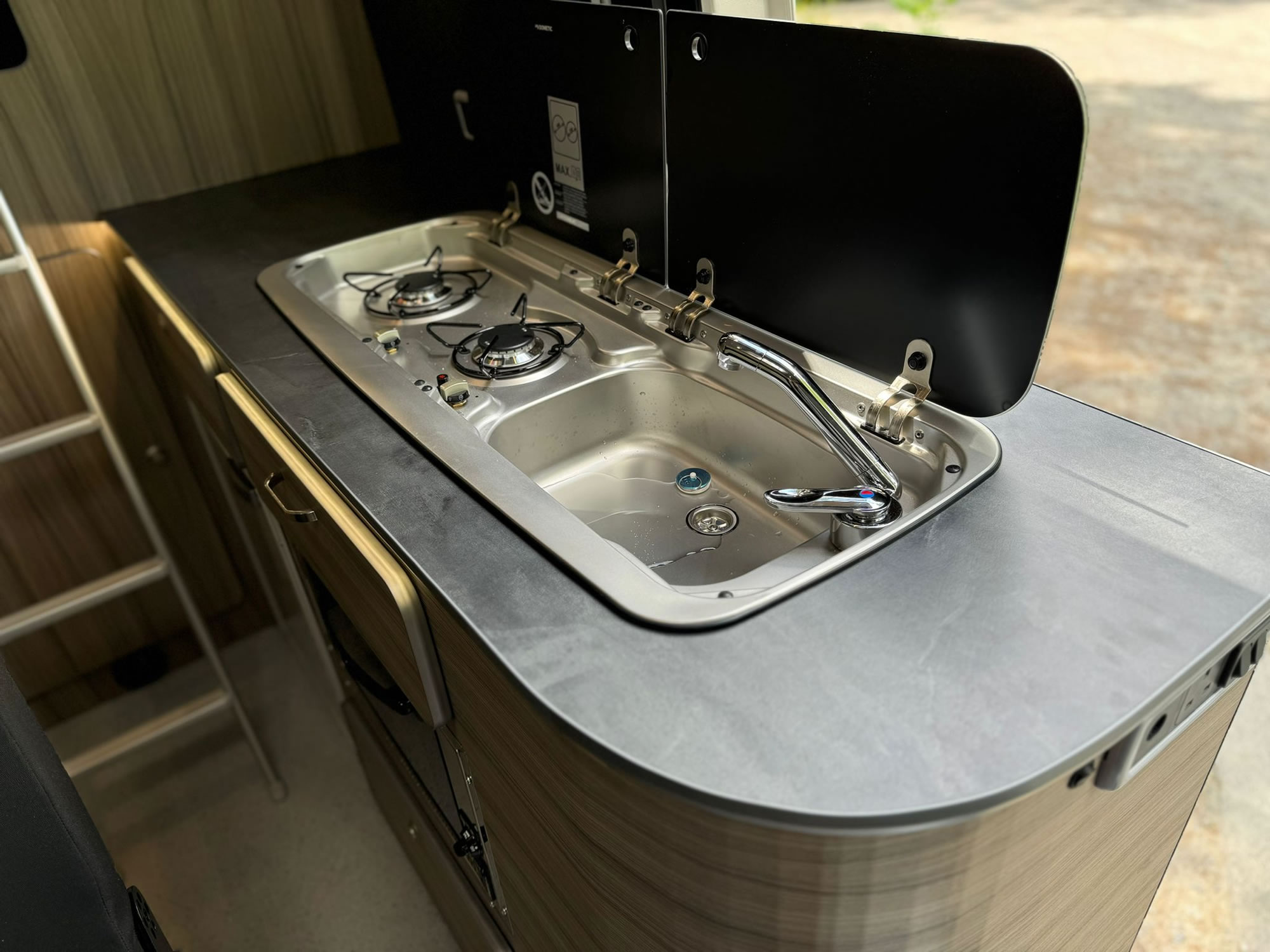

Sink & Hob

Everyone loves a cupper in the morning. The double burner hobs make this an easy option. SMEV 9222 sink and hobs are a widely used product and it is the same for us. Not everyone uses them but you have a great option.

Grill Oven

Space saving oven grills can be added for the extra flexibility when cooking.

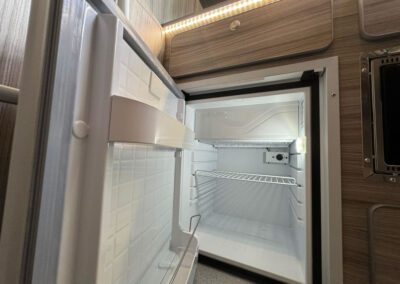

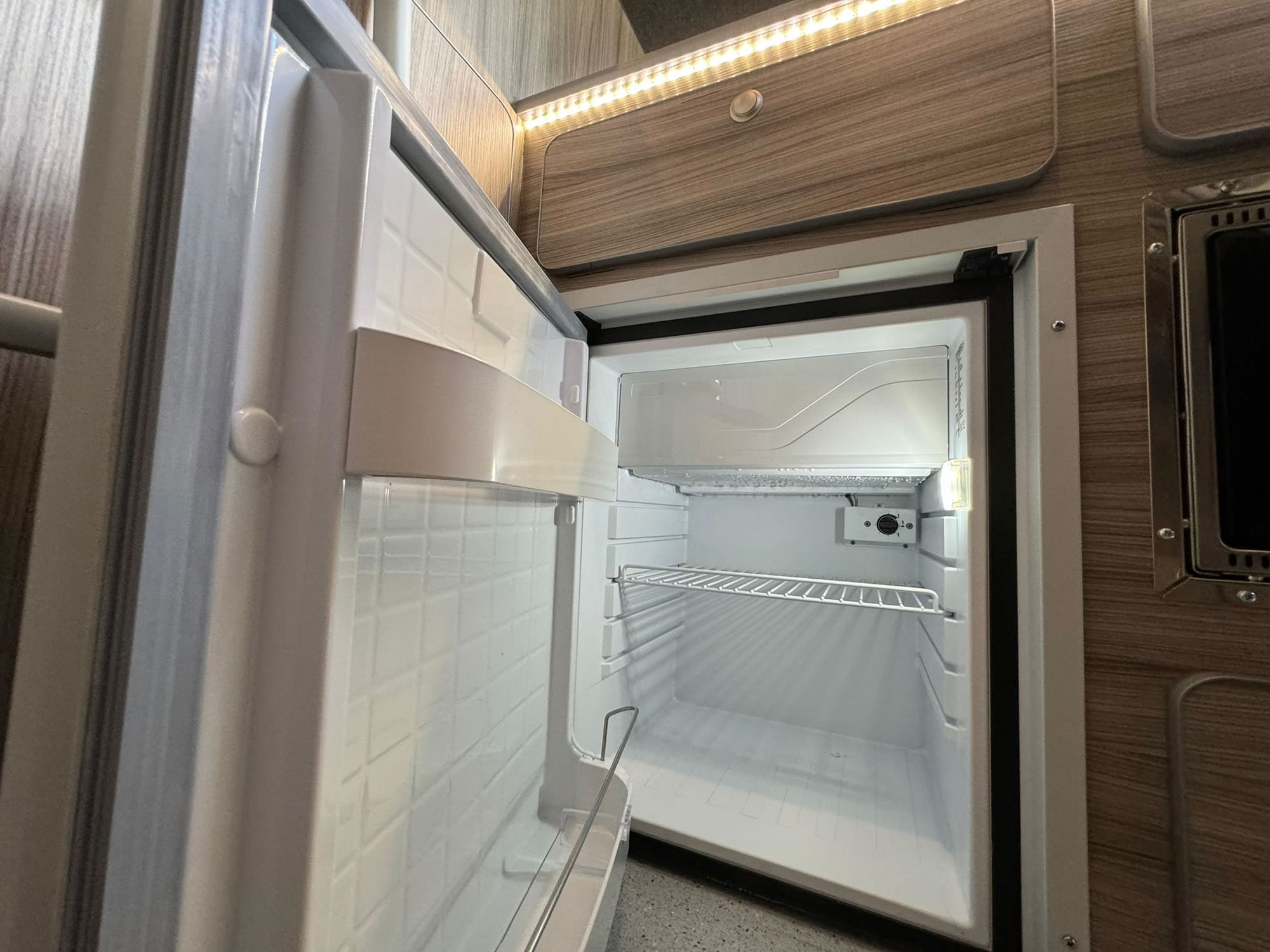

Fridge Freezer

Keep your drinks nice and cool. In all our camper conversions you have the option to have a fridge fitted. Compressor 12/240 fridges are our choice without the need to use gas and vented through he side wall of the van. 50 L fridges in the medium sized vans and the larger options available in the larger vans.

Overhead Lockers

Wanting to add a little more storage? Why not add an over head locker or two. These lockers are practical and also look amazing in the vans.

Window Blinds

We have two options, blackout premium curtains or Van shades. Both are great products and are available in different finishes and colours.

Front Cab Window Covers

We supply you with thermal screen covers which use suction cups to stick to the window, the external glass side also have a reflective thermal back to keep the heat out during the hotter summer months.

Front Swivel Seats

Single or double seats upfront all have the ability of having swivel bases added depending on the van you have. Most vans available today have this ability.

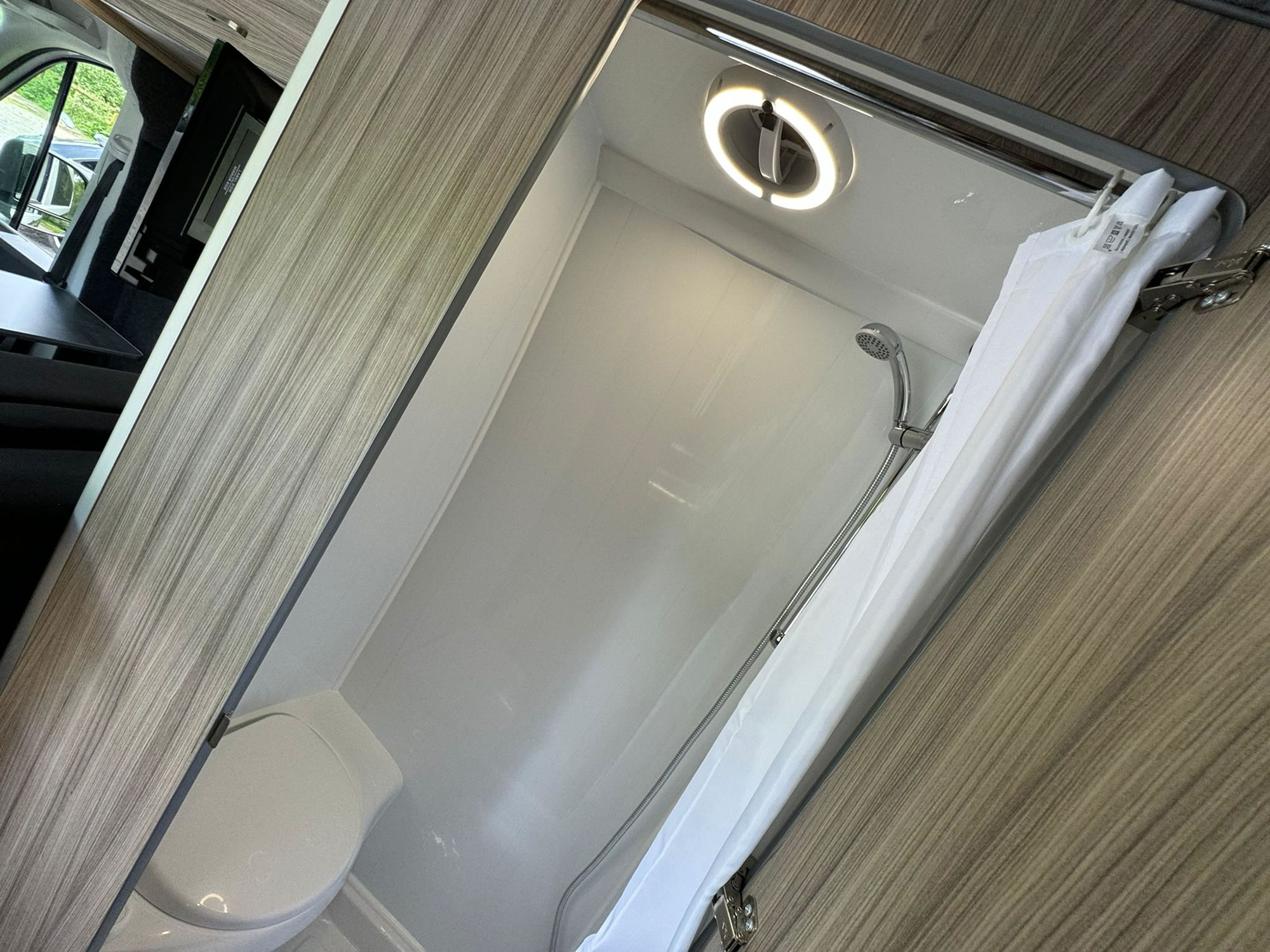

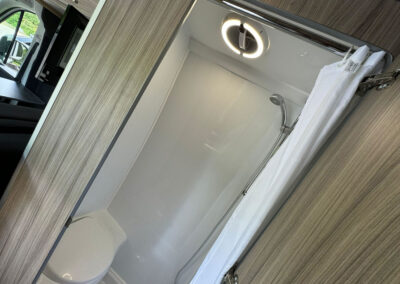

Wet Room

Available on the Rhossili and Gower edition conversions is the wet room. This features a toilet and shower area also perfect for drying your clothing with the hanging rail.
